Concept Life Sciences New Research Facility

Our solution

We began by reconfiguring the existing office space into two separate offices, connected by a central access point into the labs. Partition walls were altered to provide flow between Labs E1 and E2, improving accessibility and workflow.

Structural consultation: Assessed the load-bearing capacity for all new installations including laboratory furniture, fume cupboards and any mechanical systems. Verification of structural modifications needed for new ventilation ducting and service routes.

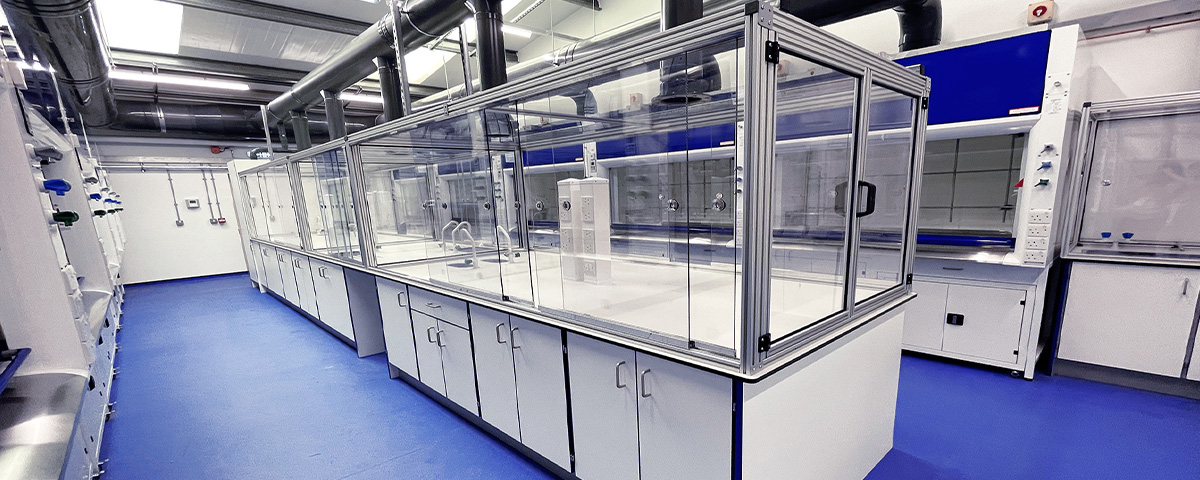

Extraction system upgrade: Extraction systems were upgraded and repositioned to suit the new lab layout, with extensive trenching and groundworks completed to support this. A new access door was created through the rear of the space to connect with the external service corridor, and a cast concrete plinth was installed to accommodate the external extraction plant.

New lighting and flooring: All lighting in the labs was stripped out and replaced, while the new office areas received inlay grid ceilings with energy-efficient LED lighting. Flooring throughout was completely replaced with low-slip vinyl to meet safety standards, and both labs and offices were fully redecorated to a high standard.

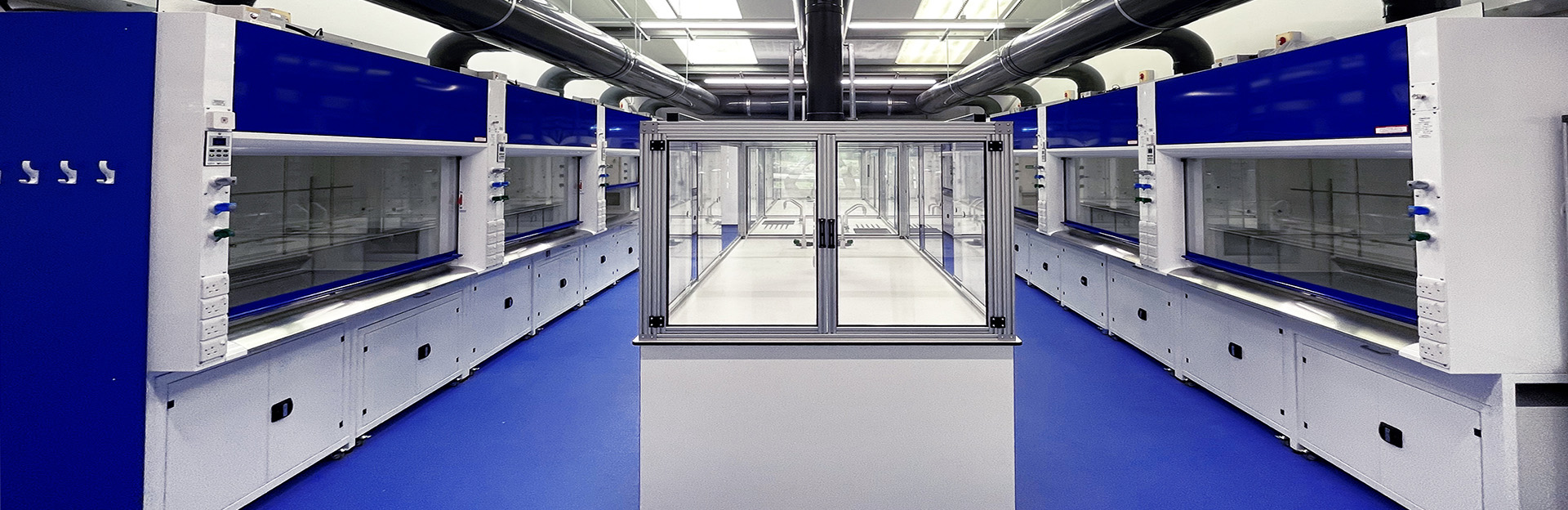

New fume cupboards: A major part of the works involved the installation of 20 new fume cupboards, each with a ventilated storage cabinet beneath, full gas connections, and individual CO₂ fire suppression systems linked to the building’s management system. A bespoke scaffold frame was installed behind each cupboard to allow for future equipment mounting. The system was also designed with 70% resilience and calculated to provide adequate ventilation to acrylic enclosures located at the centre of the labs.

Electrical & mechanical services: Further upgrades included new air conditioning systems in the office spaces, full electrical, plumbing and gas works, and complete data distribution across the area to ensure the space is fully connected and ready for use.

Furniture & equipment: Manufacture and installation of custom-built laboratory benches, specialised storage and sink units, and enhanced workspace areas for scientists.

Site testing and commissioning: Comprehensive electrical and water system testing was conducted, along with full site testing and commissioning of all fume cupboards, ensuring compliance with BS7258 (1994) and EN14175 standards. The extraction system was balanced with the addition of new filter trays and filters to increase performance, and full pressure testing of the space was carried out.

Final outcome and impact

The project was delivered on time and within budget, resulting in a significantly enhanced research environment. The completed reconfiguration of Labs E1 and E2 has provided Concept Life Sciences with a modern, efficient, and highly functional space to support their growing operations. With enhanced capacity, improved safety measures, and a layout optimised for collaboration and workflow, the facility is now perfectly aligned with CLS’s long-term research and development goals.

By entrusting Innova Design Group with the transformation of their laboratory spaces, CLS has gained a fully integrated, cost-effective research environment tailored to their exact needs. The new state-of-the-art laboratories enhance operational efficiency and provide scientists with the tools and infrastructure essential for sustained scientific innovation and groundbreaking research.
